FACTORY AUTOMATION

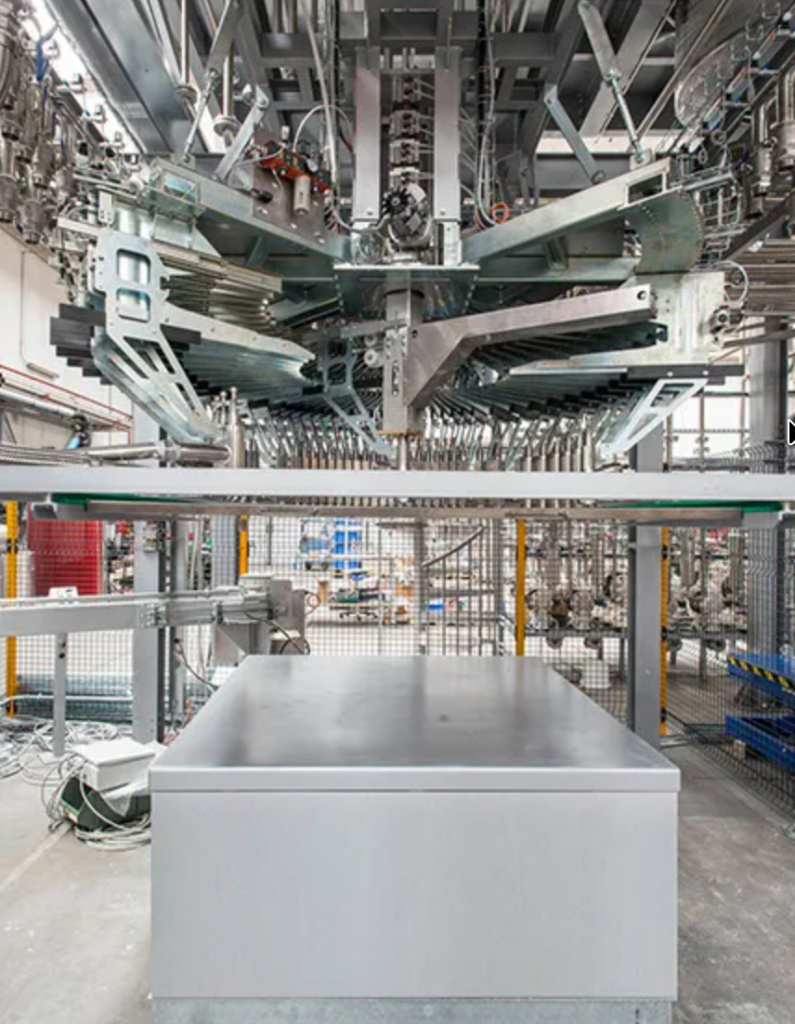

iBSM INBATCH SHUTTLE MANUFACTURING

The inBATCH SHUTTLE MANUFACTURING system can integrate the UWP (Universal Weighing Platform) system and the DWM (Dispensing While Mixing) software compensation.
The power supply connected to the mixer and dispensing while
mixing is performed according to the selected scale accuracy.

Innovative power connection suitable for CE-Atex classified area.

Only one operator dedicated to the supervision of the process.
Automatic self-cleaning mixer.
Closed vessel handling loop.

UWP
UNIVERSAL WEIGHING PLATFORM

Developed by Dromont to allow weighing of any kind of vessel with multiple accuracy.

The floor platform is connected to 3 different scales each one working by its accuracy.

Once the vessel enter the dispensing area, the corresponding scale is selected depending on the vessel capacity, then dispensing is performed according to selected scale accuracy.

The scales are connected to the single platform through a pneumatic system on request.

That avoids also the smaller scale to be damaged when bigger vessel enter the dispensing area.

The system allows also a 4th weighing scale can be placed also on a swinging arm for small pails 32 Kg max weight.


UWP ADVANTAGES

Quicker manufacturing time for in-batch and in-drum production.
Easier logistics (1 multiple platform instead of 3 scales).
Footprint reduction.
Any vessel can go onto the platform without damaging the smaller.
<\p>

INTEGRATION WITH EXISTING SAP MANAGEMENT SYSTEM

Production orders will be automatically uploaded into the Plant manufacturing system and spread through the manufacturing units.
